Modular House 1.3
BUILT-UP AREA – 24m²
DIMENSIONS – 5.00m × 4.80m × 2.70m
PRICE
16.500 GBP
DELIVERY
30 DAYS
PRESENTATION
TECHNICAL DETAILS
BUILT-UP AREA – 24m²
DIMENSIONS – 5.00m × 4.80m × 2.70m
** includes transport and installation

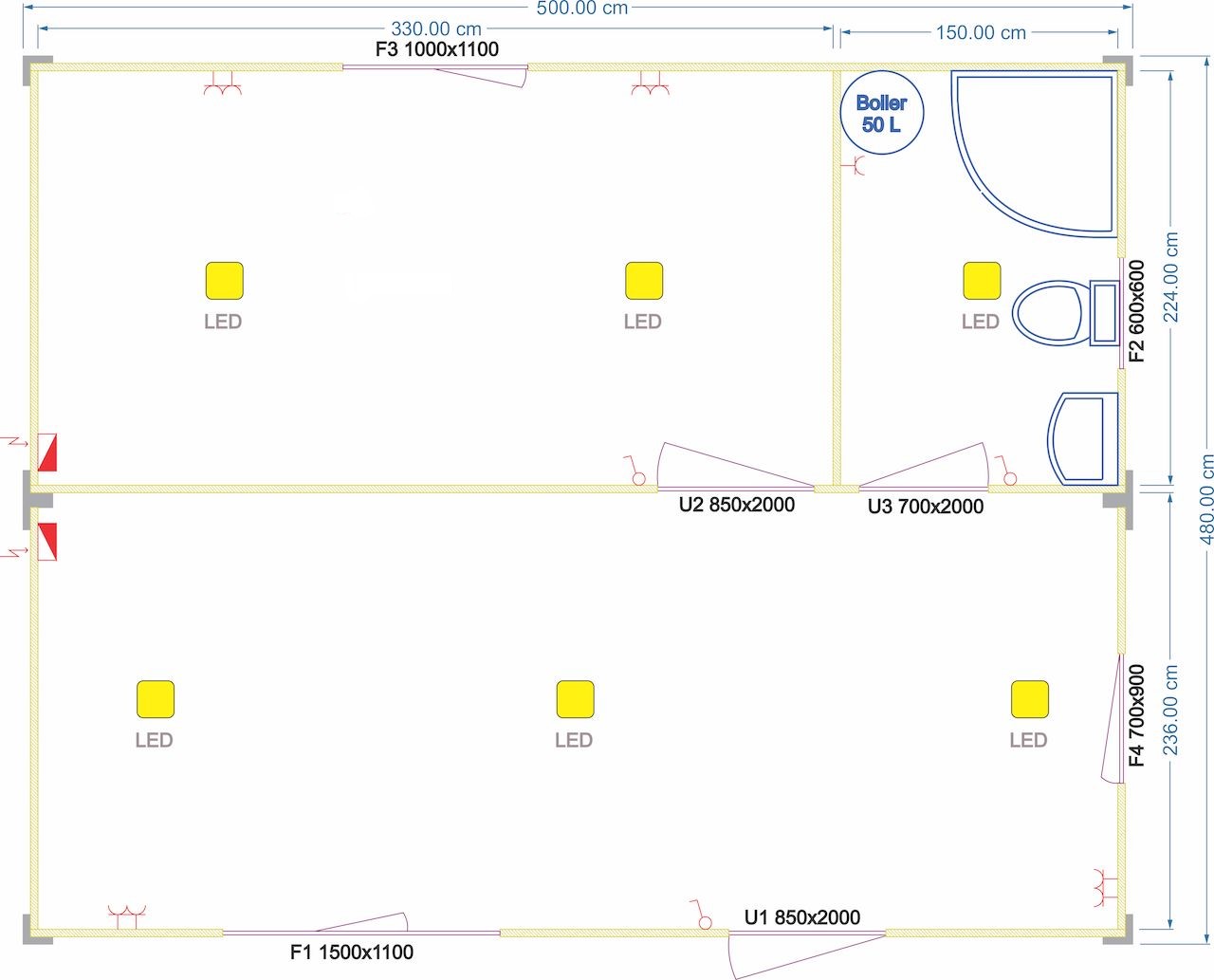

Dimensions (L x W x H): 5.00m × 4.80m × 2.70m
Frame: Single-piece – made of 2 mm galvanized sheet, cold-rolled, exclusive for container construction, primed and electrostatically painted for increased corrosion resistance.
Floor: 0.3 mm corrugated galvanized sheet, wood beams (100 x 100 mm), 100 mm mineral wool, 18 mm raw chipboard, parquet foil and 6 mm laminate flooring, in the toilet area the laminate flooring is replaced with heavy-duty PVC carpet.
Ceiling: 0.5 mm smooth galvanized sheet, wood beams, 100 mm mineral wool, and 16 mm white melamine chipboard.
External and internal walls: sandwich panels with 40 mm polyurethane foam
Access door: PVC windows 850 x 2000 mm – 1 piece – with Float glass + Lowe and panel**
Internal door: PVC windows 700 x 2000 mm – 1 piece – with panel
Windows: PVC windows 750 x 1500 mm, one swing-out leaf – 2 pieces
PVC windows 600 x 600 mm, one swing-out leaf – 1 piece
Electrical installation: differential of 0.03 A
Automatic fuse 25 A (sockets)
Automatic fuse 6 A (lighting)
Cabling: MYF 2.5 sockets MYF 1 lighting
Power supply plug: 32 A
Power supply socket: 32 A
Schuko socket 16 A double - 2 pieces
Schuko socket 16 A single - 1 piece
LED – 3 pieces.
1 toilet bowl;
1 washbasin;
1 washbasin furniture;v 1 mirror;
1 shower cabin;
1 electric boiler 50 L
– – Walls: The walls are made of insulated concrete blocks with a thickness of 24 cm and 10 cm of polystyrene insulation. This is equivalent to the insulation of a conventional concrete block wall with a thickness of 34 cm.
- Ceiling: The ceiling is made of insulated concrete blocks with a thickness of 24 cm and 10 cm of polystyrene insulation. This is superior to the insulation of a conventional wooden floor with a thickness of 10 cm of mineral wool.
- Floor: The floor is made of insulated concrete blocks with a thickness of 24 cm. This is equivalent to the insulation of a conventional concrete floor.
- Windows: The windows have a U-value of up to 1.0 W/m²K, which meets current and future thermal insulation requirements. This allows for a window U-value of up to 0.67 W/m²K. The system is constantly being developed to meet future energy efficiency standards and requirement
s.
1. Project planning: The customer works with Home Intelligent to create a custom project that meets their needs and budget. This includes the layout of the interior and exterior, as well as the type of finishes.
2. Budget and contract: Home Intelligent provides the customer with a detailed budget for the project and a contract that outlines the scope of work and the terms of the agreement.
3.Production: The modular home is built in a factory according to the approved project plan.
4. Foundation and connections: The foundation is prepared and the necessary connections are made to the utilities.
5.Delivery: The modular home is delivered to the customer's site and installed.
